When it comes to keeping electronic devices cool, heat sinks are the unsung heroes. They help take heat away from electronic parts, making sure everything works smoothly. One type of heat sink that’s becoming more popular is the die-cast aluminum heat sink . In this blog, we’re going to dive deep into what makes these heat sinks so special, how they are made, and why they might be the best choice for your needs.

What Is a Die Cast Aluminum Heat Sink?

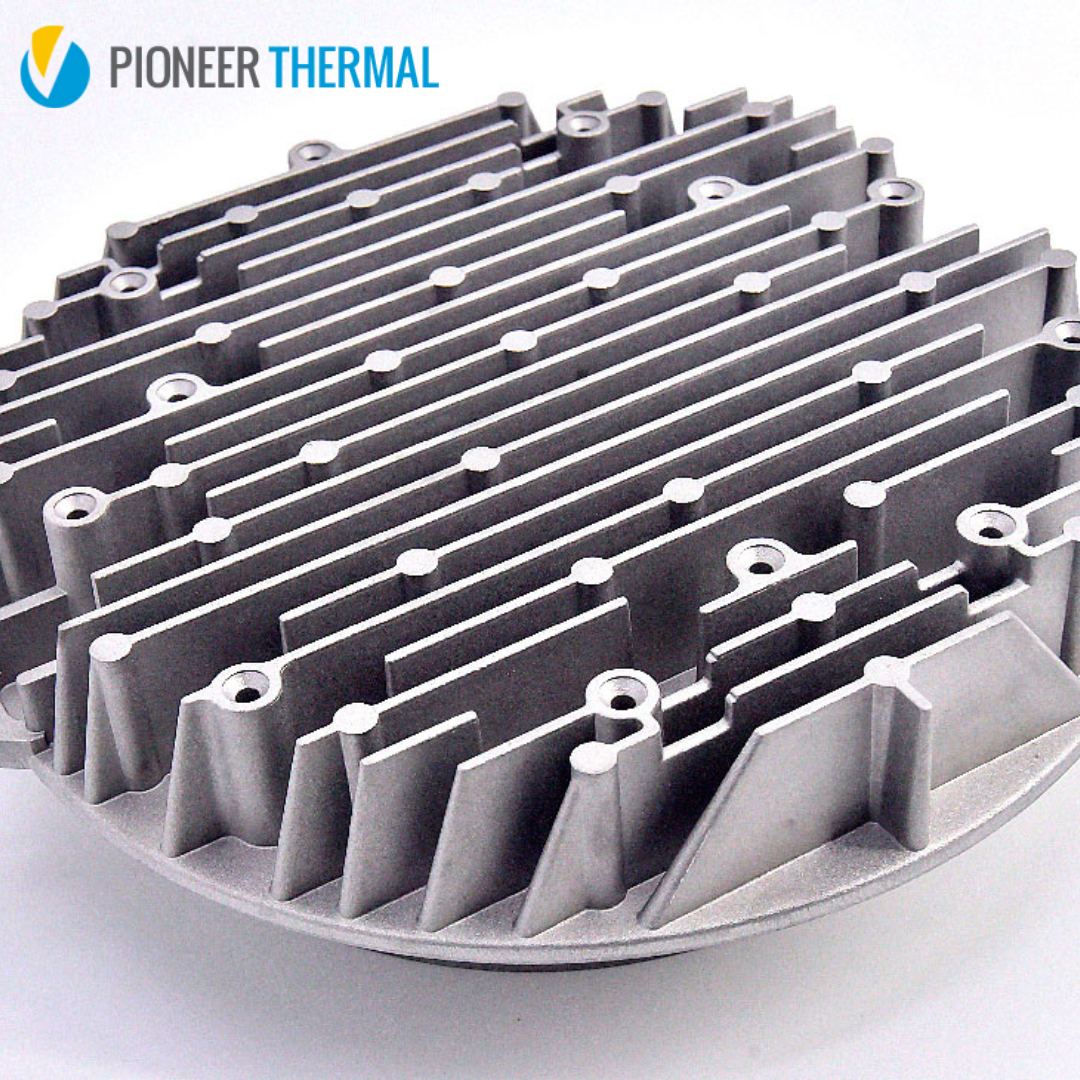

A die-cast aluminum heat sink is a type of heat sink made by pouring melted aluminum into a special mold. Imagine pouring batter into a cake pan; just like how the batter takes the shape of the pan, the aluminum takes the shape of the mold. This mold is designed to create the exact shape needed for the heat sink. After the aluminum cools and hardens, the mold is removed, leaving behind a solid piece of aluminum in the perfect shape to help cool down electronic devices.

But what’s even cooler about these heat sinks is their ability to have very complex shapes. Because of how the die-casting process works, it’s possible to create heat sinks with lots of tiny fins or detailed designs that help make them even better at getting rid of heat.

How Are Die Cast Aluminum Heat Sinks Made?

The process of making a die-cast aluminum heat sink starts with melting aluminum until it’s like a hot, liquid soup. This molten aluminum is then poured into a mold, which is usually made of steel. The mold has the exact shape of the heat sink that we want to make.

Once the aluminum is in the mold, it is pressed at very high pressure. This pressure is important because it helps make sure that the aluminum fills every tiny part of the mold, capturing all the little details of the shape. After the aluminum has cooled down and turned solid again, the mold is opened, and the new heat sink is taken out.

Benefits of Die Cast Aluminum Heat Sinks

1. Complex Shapes: One of the biggest advantages of using a die-cast aluminum heat sink is that it can have very complicated shapes. Because of the high pressure used during the casting process, the aluminum can fill even the smallest parts of the mold. This means you can have a heat sink with lots of fins or other features that help it cool things down more effectively.
2. High Precision: Die casting is also known for its high precision. This means that the heat sinks come out with very exact dimensions, which is really important when they need to fit perfectly into electronic devices. Because of this precision, the die-cast aluminum heat sink is a popular choice for many tech products.
3. Cost-Effective: Making heat sinks through die casting can be less expensive than other methods, especially when making a lot of them. This is because once the mold is made, it can be used over and over again to make many heat sinks. This helps save money on materials and production costs.
4. Durable and Strong: Aluminum is a strong metal, but when it’s used in a die-cast heat sink, it becomes even stronger. The high-pressure process makes the aluminum very dense, which adds to its strength. This makes die-cast heat sinks very durable and able to last a long time, even in tough conditions.

Why Choose Die Cast Aluminum Heat Sinks?

When choosing a heat sink, it’s important to consider what your specific needs are. Die-cast aluminum heat sinks are an excellent choice for several reasons:

• Efficient Cooling: They are really good at moving heat away from electronic components. The complex shapes that can be achieved with die casting mean more surface area for heat to escape, making them very effective at cooling.
• Great for Mass Production: Because the die-casting process is so fast and can be repeated many times with the same mold, it’s ideal for producing a lot of heat sinks quickly. This is why they are often used in consumer electronics, which need to be produced in large quantities.
• High Quality and Consistency: The process of die casting ensures that each heat sink is made exactly the same way. This means you get a high level of quality and consistency with each heat sink produced.

The Technology Behind Die-Cast Heat Sinks

To make sure that every die-cast heat sink is up to standard, manufacturers use a lot of advanced technology. Here are a few of the cool tools they use:

• Mold Flow Analysis: This is like a computer game where you get to see how the molten aluminum will flow into the mold. By analyzing this flow, manufacturers can make sure that the mold design is perfect and that the aluminum fills every part of it. This helps reduce waste and ensures a higher quality product.
• X-Ray Scanning: After the heat sink is made, it’s important to make sure there are no defects inside. X-ray scanning is used to look inside the aluminum without having to cut it open. This way, any problems can be spotted and fixed before the heat sink is shipped out.
• Automated Machines: To make sure that each heat sink is made to the exact specifications, fully automatic machines are used. These machines can measure the dimensions of each heat sink and make sure they meet all the necessary requirements.

Die Cast Heat Sink vs. Other Types

When it comes to choosing a heat sink, there are different types available, each with its own set of benefits. Let’s take a look at how the die-cast heat sink stacks up against other types:

1. Extruded Heat Sinks: These are made by pushing aluminum through a die to create a long piece with fins. While they are also good at cooling, they are not as precise or complex as die-cast heat sinks. This makes die-cast aluminum heat sinks better for applications that need more detailed shapes or a higher level of precision.
2. Stamped Heat Sinks: These are made by stamping or punching out a shape from a sheet of metal. While they are usually less expensive, they don’t offer the same level of detail or performance as a die-cast heat sink. Stamped heat sinks are better for simple applications where cost is more important than performance.
3. Bonded Fin Heat Sinks: These are made by bonding fins onto a base. While they can be very effective, especially for high-power applications, they are usually more expensive and more complex to produce. Die-cast heat sinks are often a better choice when cost and simplicity are important factors.

Conclusion

At Pioneer Thermal, we believe the die-cast aluminum heat sink is the perfect choice for anyone looking to cool electronic devices efficiently and affordably. Our die-cast heat sinks provide an ideal balance of performance, cost, and precision. Thanks to their ability to take on complex shapes, their impressive durability, and the efficient use of high-quality materials, these heat sinks are becoming more popular than ever.

Whether you’re building a new computer, working on an industrial project, or designing the next big tech gadget, a die-cast aluminum heat sink from Pioneer Thermal might be just what you need to keep everything running smoothly. With all the benefits our heat sinks offer, it’s clear why engineers and manufacturers around the world choose Pioneer Thermal as their trusted source for heat management solutions.

If you’re searching for a reliable, cost-effective solution to manage heat, look no further than Pioneer Thermal’s die-cast heat sinks. We provide high-performance, long-lasting products that are perfect for a wide range of applications. So, the next time you need to keep your electronics cool, trust the expertise and quality of Pioneer Thermal’s die-cast aluminum heat sinks—the smart choice for your cooling needs!
