In the fast-paced world of electronics and thermal management, staying cool under pressure isn’t just a figure of speech—it’s a necessity. From telecommunications and data centers to medical devices and electric vehicles, efficient cooling systems are the backbone of high-performance applications. Among these systems, water cooled cold plates have emerged as a game-changer, setting new standards in heat dissipation and reliability.

This blog explores the evolution of water cooled cold plates, their innovative advancements, and their growing importance in modern industries.

A Brief History of Water Cooled Cold Plates

The concept of using liquids for cooling dates back decades, with early systems relying on basic methods to transfer heat. Initially, water-cooled solutions were rudimentary and limited to niche applications. However, as electronics became smaller and more powerful, the demand for advanced thermal management solutions skyrocketed.

Early cold plate cooling systems were costly, complex, and lacked widespread adoption. Over time, advancements in materials, manufacturing, and design processes revolutionized the industry. Today, water cooled cold plates are integral to high-performance applications, offering unmatched efficiency compared to traditional air cooling systems.

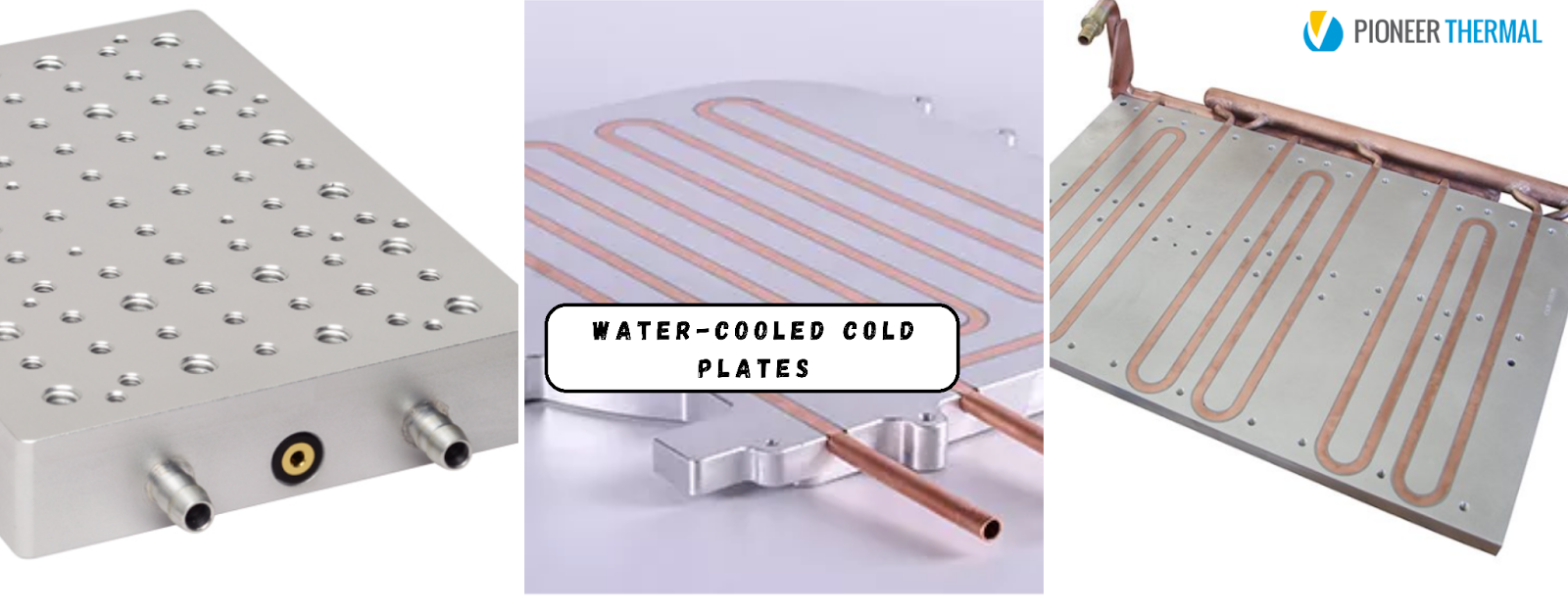

How Water Cooled Cold Plates Work

At their core, water-cooled cold plates operate on a simple principle: liquid absorbs and transfers heat better than air. Here’s how they function:

1. Heat Absorption: Heat from electronic components is transferred to a metal plate, typically made of aluminum or copper. These metals are excellent conductors, ensuring efficient heat transfer.
2. Coolant Circulation: A liquid coolant, often a water-glycol mixture, flows through channels or embedded tubing within the plate. As it circulates, the coolant absorbs the heat from the plate.
3. Heat Dissipation: The heated coolant is directed to an external chiller or radiator, where the heat is released. The cooled liquid then re-enters the system, creating a continuous cooling loop.

This efficient process makes water-cooled cold plates the preferred choice for industries where traditional air cooling falls short.

Modern Innovations in Water-Cooled Cold Plates

The evolution of water cooled cold plates is marked by significant advancements in materials, design, and manufacturing techniques. Companies like Pioneer Thermal are leading the charge, offering state-of-the-art solutions tailored to diverse applications. Here are some notable innovations:

Advanced Manufacturing Techniques

Modern manufacturing processes have drastically improved the performance and cost-effectiveness of cold plates:

• Friction Stir Welding (FSW): This process ensures a seamless bond between materials, enhancing thermal conductivity. Pioneer Thermal’s FSW plates can accommodate dimensions up to 2000 mm in length.
• Vacuum Brazing: By eliminating impurities, vacuum brazing creates strong, leak-proof joints, ideal for high-pressure systems.

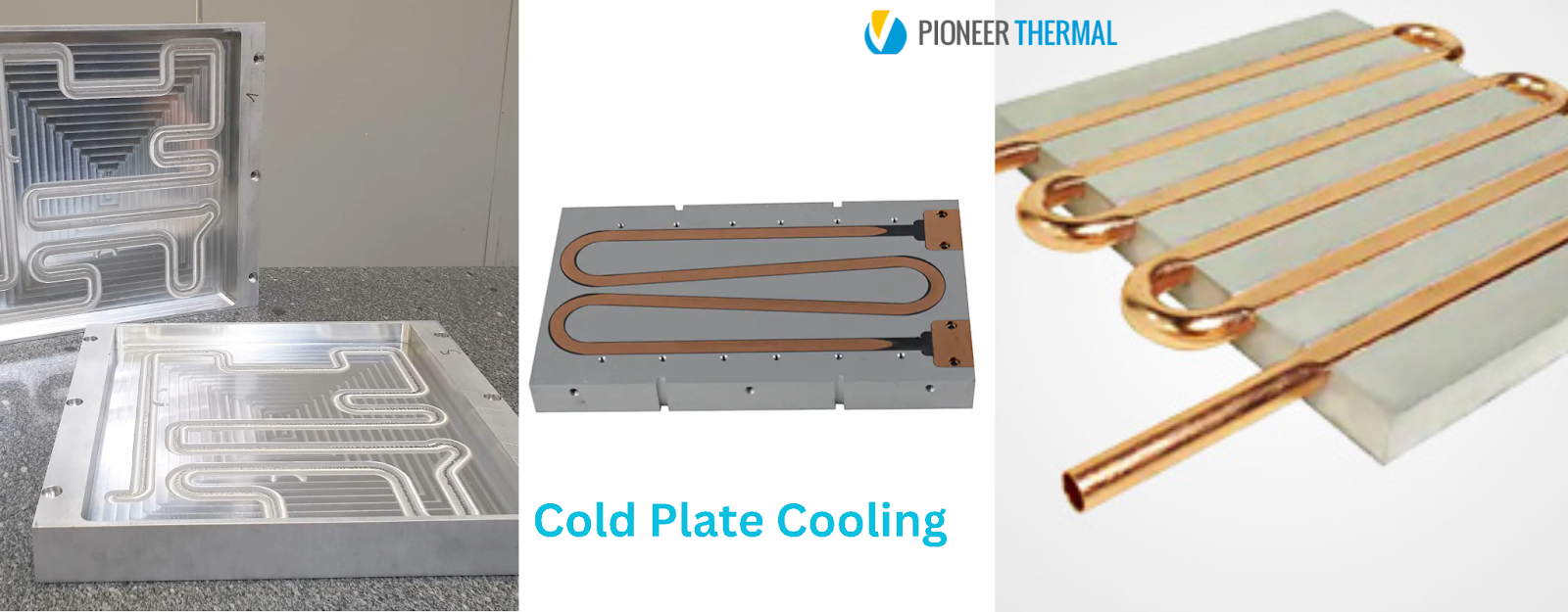

• Tube Embedding: Embedding cooling tubes within plates provides a compact yet efficient solution for thermal management.

Precision Engineering

High-precision machining centers and automated inspection equipment ensure that every plate meets strict quality standards. This precision minimizes flow resistance and guarantees stable performance over time.

Specialized Testing Equipment

Innovative testing methods, including nitrogen and helium leak detection and flow resistance testing, ensure reliability and longevity. Pioneer Thermal’s dedicated test platforms simulate real-world conditions to optimize thermal performance.

Applications of Water-Cooled Cold Plates

The versatility of water cooled cold plates makes them indispensable across various industries:

• Data Centers and Servers: With rising computational demands, efficient cooling is crucial to prevent overheating and ensure uninterrupted performance.
• Medical Devices: From MRI machines to laser systems, water-cooled cold plates enable the safe and precise operation of sensitive equipment.
• Electric Vehicles (EVs): In EVs, cold plates help manage the heat generated by batteries and power electronics, improving efficiency and safety.
• Telecommunications: As networks expand to support 5G and beyond, robust cooling solutions are essential to maintain reliability.
• Renewable Energy: Cold plates play a vital role in cooling photovoltaic systems and power inverters, contributing to sustainable energy solutions.

Why Choose Water-Cooled Cold Plates?

Water-cooled cold plates offer numerous advantages over traditional air-cooled systems:

1. Superior Heat Dissipation: Liquids have a higher thermal capacity than air, allowing for more effective heat transfer.
2. Compact Design: Without the need for large fans or heat sinks, water-cooled systems save space and reduce weight.
3. Reliability: Closed-loop systems maintain stable cooling performance, even in extreme environments.
4. Cost Efficiency: Innovations in manufacturing have made these systems more affordable, increasing their accessibility for various industries.

When designed and implemented correctly, water-cooled cold plates can provide years of service, making them a valuable investment for businesses worldwide.

The Future of Cold Plate Cooling

As technology advances, the demand for efficient and sustainable cooling solutions will only grow. Future innovations are likely to focus on:

• Enhanced Materials: The development of advanced alloys and composites for better heat conductivity.
• Smart Cooling Systems: Integration with IoT devices for real-time monitoring and optimization.
• Eco-Friendly Coolants: Research into biodegradable and non-toxic coolant alternatives.

Pioneer Thermal is at the forefront of these innovations, continually pushing the boundaries of what water-cooled cold plates can achieve.

Why Pioneer Thermal?

With over two decades of expertise, Pioneer Thermal has established itself as a global leader in thermal management solutions. Our 91,000-square-foot facility is equipped with cutting-edge machinery and staffed by a team of skilled professionals dedicated to delivering excellence. From friction stir welding to vacuum brazing, our comprehensive manufacturing processes ensure that every water-cooled cold plate meets the highest standards.

At Pioneer Thermal, we understand that every business has unique needs. That’s why we offer customized OEM and ODM services, working alongside with our clients to develop solutions tailored to their specific applications. Whether you’re in the automotive, medical, or renewable energy sector, we have the expertise to deliver the right solution for you.

Conclusion

The journey of water cooled cold plates from niche components to indispensable tools in modern industries is a testament to the power of innovation. As technology continues to evolve, these systems will play a vital role in ensuring the efficiency, reliability, and sustainability of high-performance applications.

If you’re looking for cutting-edge thermal management solutions, Pioneer Thermal is your trusted partner. Contact us today to learn more about how our advanced water cooled cold plates can revolutionize your business.
