In today’s world of advanced technology, keeping electronic devices cool is essential to ensure they work properly. From computers to industrial machines, they all generate heat, and if they get too hot, they may stop working or become damaged. This is where heat sinks come in. They help remove excess heat by allowing it to escape into the surrounding air. Among the many types of heat sinks, one of the most effective is the skived fin heat sink.

In this blog, we’ll take a detailed look at the skived fin heat sink manufacturing process, the benefits of using these heat sinks, and how they help keep devices cool. We’ll explain everything in simple terms, so even a 10-year-old can understand it!

What is a Skived Fin Heat Sink?

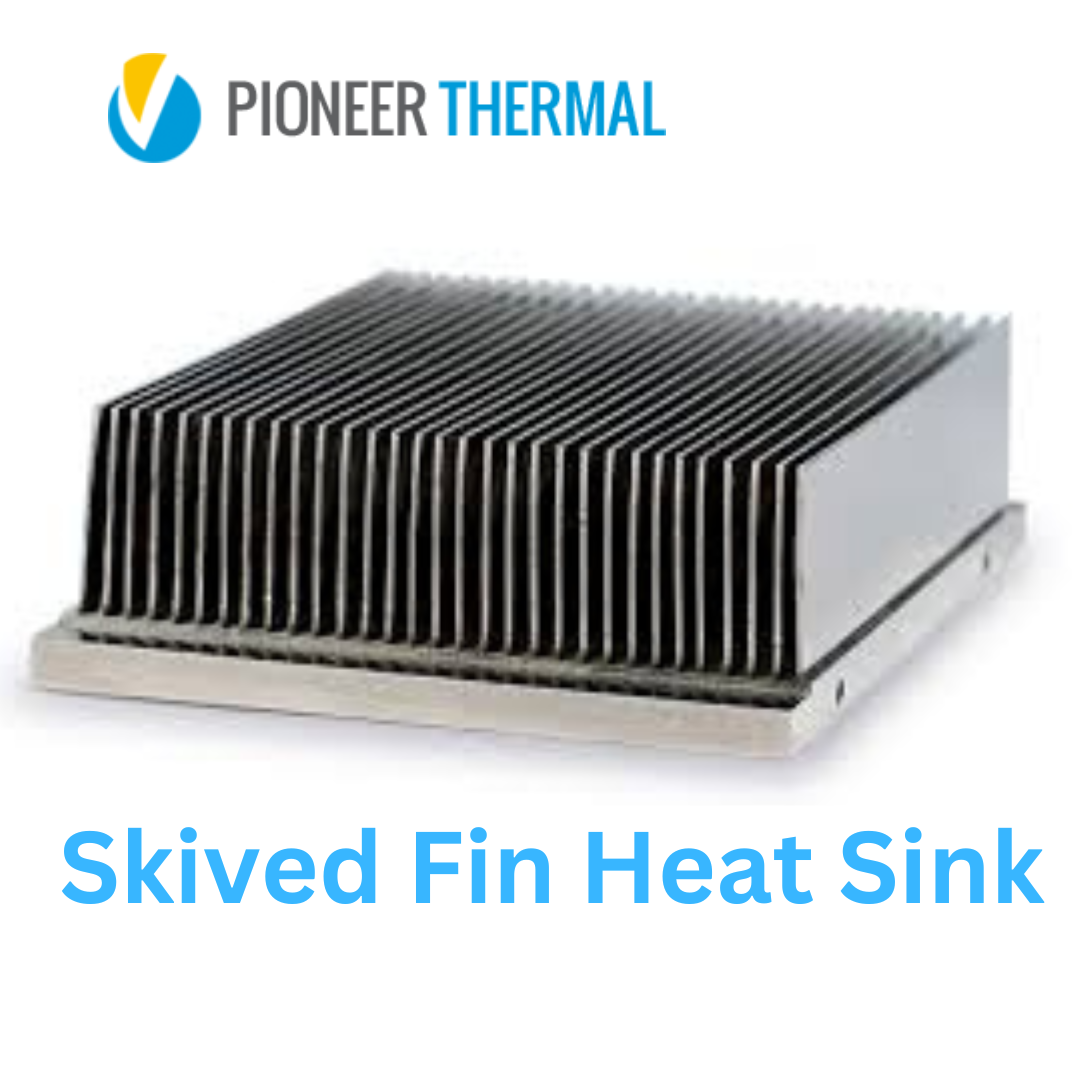

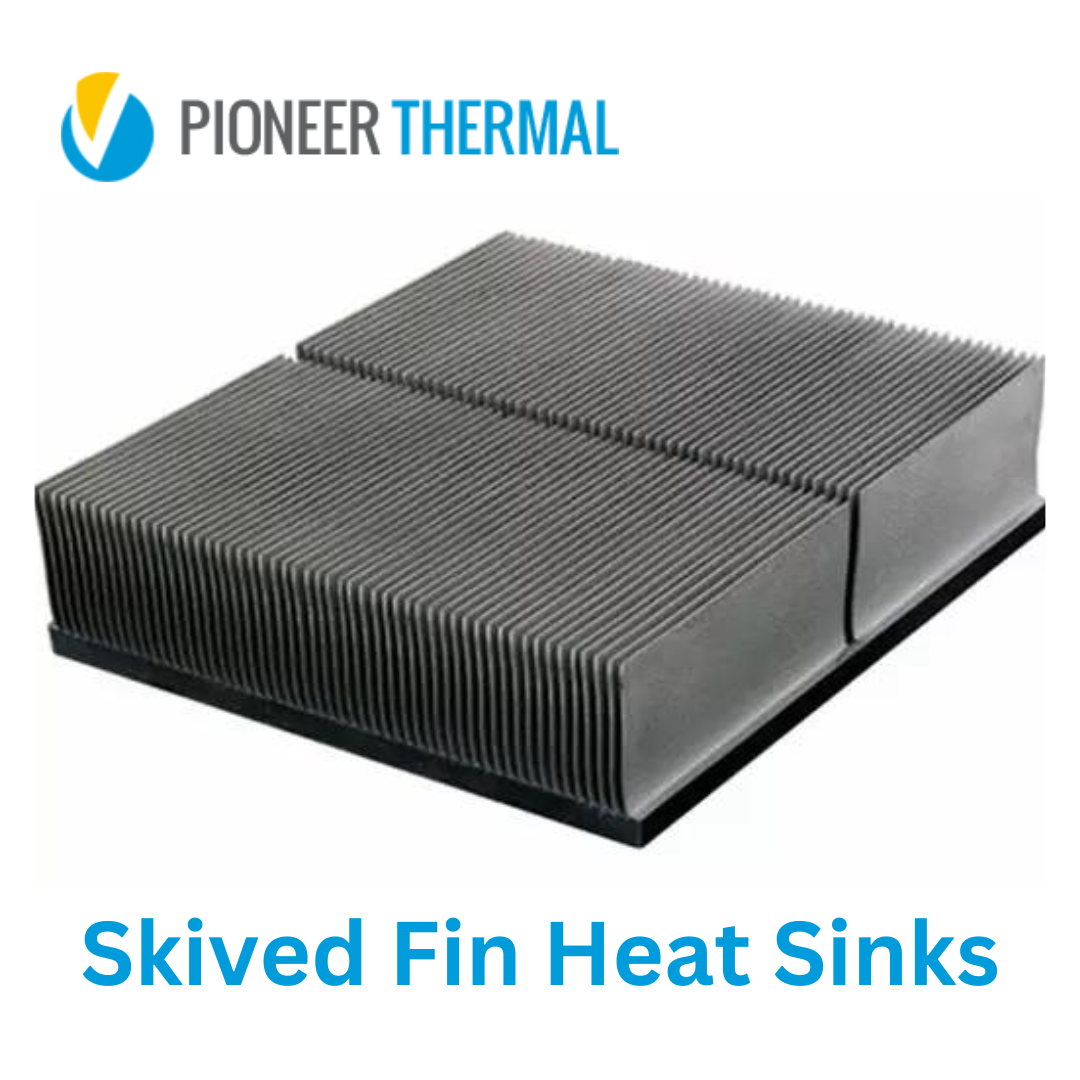

Before diving into the manufacturing process, it’s important to understand what a skived fin heat sink is. A heat sink is a device that cools electronic components by spreading heat away from them. In a skived fin heat sink, thin metal fins are sliced, or “skived,” from a block of material, usually aluminum or copper. These fins are then bent upwards to create more surface area, which helps release heat faster.

Skiving is a technique where a blade slices the material to create fins directly from the base without needing any additional parts like solder or adhesives. The result is a strong, efficient, and lightweight heat sink.

Materials Used in Skived Fin Heat Sinks

Skived fin heat sinks are usually made from two main materials:

1. Aluminum (AL1060 or AL6063): Aluminum is lightweight and cheaper than copper, making it ideal for many applications.
2. Copper (CU1100): Copper is more efficient at conducting heat but is heavier and more expensive.

Both materials can be used to create skived heat sinks depending on the specific needs of the device they are cooling.

How Skived Fin Heat Sinks Are Made: The Step-by-Step Process

Let’s break down the process of making a skived fin heat sink step by step.

Step 1: Preparing the Material

The process begins with a block of aluminum or copper, known as the base material. The thickness and size of this base material will depend on the specific requirements of the heat sink.

Step 2: Skiving the Fins

Once the base material is ready, a cutting tool is used to “skive” or slice thin fins from the block. These fins are extremely thin—sometimes as thin as 0.1mm! The skiving tool shaves up these fins from the base while keeping them attached. Since the fins are part of the original material, no additional welding or soldering is needed, making the heat sink stronger and more efficient.

Step 3: Forming the Fins

After the fins have been skived, they are bent upwards to form the final shape of the heat sink. The fins can be bent at different angles depending on how much airflow the heat sink needs. The fin gap—the space between each fin—is also very small, around 0.1mm, which increases the surface area and helps the heat sink release heat more quickly.

Step 4: Quality Control and Testing

Once the fins are formed, the heat sink goes through a series of tests to make sure it will work properly. The skived fin heat sink is measured to ensure it meets the exact design requirements, and its cooling performance is tested in thermal chambers.

At this stage, the heat sink may also go through other tests like shock testing (to make sure it can handle sudden movements) or corrosion analysis (to check how it reacts to moisture and salt). These tests ensure that the heat sink will last a long time and continue to work effectively.

Step 5: Final Product

After passing all the tests, the skived fin heat sink is ready for use. It is packaged carefully to protect the delicate fins and shipped to customers around the world. Pioneer Thermal, a leading manufacturer, specializes in producing these high-quality heat sinks using the latest equipment and techniques.

Why Choose a Skived Fin Heat Sink?

Now that we’ve covered how skived fin heat sinks are made, let’s talk about why they are such a great choice for cooling devices.

1. Higher Heat Dissipation

One of the biggest benefits of a skived fin heat sink is its ability to release more heat due to its larger surface area. The fins are very thin, allowing more heat to escape into the air. This means the device stays cooler for longer.

2. No Need for Soldering

Because the fins are cut directly from the base material, there’s no need to attach them using solder or adhesives. This improves the heat transfer efficiency since the base and fins are made from the same material.

3. Lightweight

The thin fins make the heat sink lighter, which is especially important for devices that need to be portable or lightweight. Even though they are thin, the fins are strong because they are part of the original material.

4. Cost-Effective

Compared to other heat sinks, like those that use heat pipes, skived fin heat sinks are often more affordable. This makes them a popular choice for many types of electronic devices.

Applications of Skived Fin Heat Sinks

Skived fin heat sinks are used in a wide variety of applications, especially where space is limited and efficient cooling is critical. Some examples include:

• Computers and Servers: To keep processors and other components cool.
• Industrial Machines: To prevent overheating in large machinery.
• LED Lights: To ensure long-lasting performance by keeping lights cool.
• Electric Vehicles: To cool batteries and other electronics.

With their high heat dissipation and strong, lightweight design, skived fin heat sinks are the perfect solution for modern cooling needs.

Pioneer Thermal: Your Trusted Partner for Skived Fin Heat Sinks

When it comes to choosing the right skived fin heat sink, Pioneer Thermal is a name you can trust. With state-of-the-art machinery, expert engineers, and a focus on continuous improvement, Pioneer Thermal provides top-quality heat sinks for a variety of applications.

Here are some reasons why Pioneer Thermal stands out:

• Custom Designs: They can create heat sinks tailored to your specific needs.
• Rapid Prototypes: Quick turnaround times for prototypes to test in your application.
• Strict Quality Control: All products undergo thorough testing to ensure they meet the highest standards.
• Affordable Solutions: Despite their high quality, Pioneer Thermal’s heat sinks are cost-effective.

Whether you need a custom solution or a standard skived heat sink, Pioneer Thermal has the expertise to meet your cooling needs.

Conclusion

The skived fin heat sink is an incredible tool for keeping electronic devices cool, thanks to its large surface area, lightweight design, and cost-effective manufacturing process. From slicing thin fins to rigorous testing, the entire process ensures a high-quality product that performs well under various conditions.

So, if you’re looking for a reliable cooling solution, a skived fin heat sink from Pioneer Thermal might be just what you need. We offer high heat dissipation, strong durability, and a price you can afford, making us the go-to choice for many industries.

Contact Pioneer Thermal today to learn more about how their skived fin heat sinks can help you keep your devices running smoothly.
